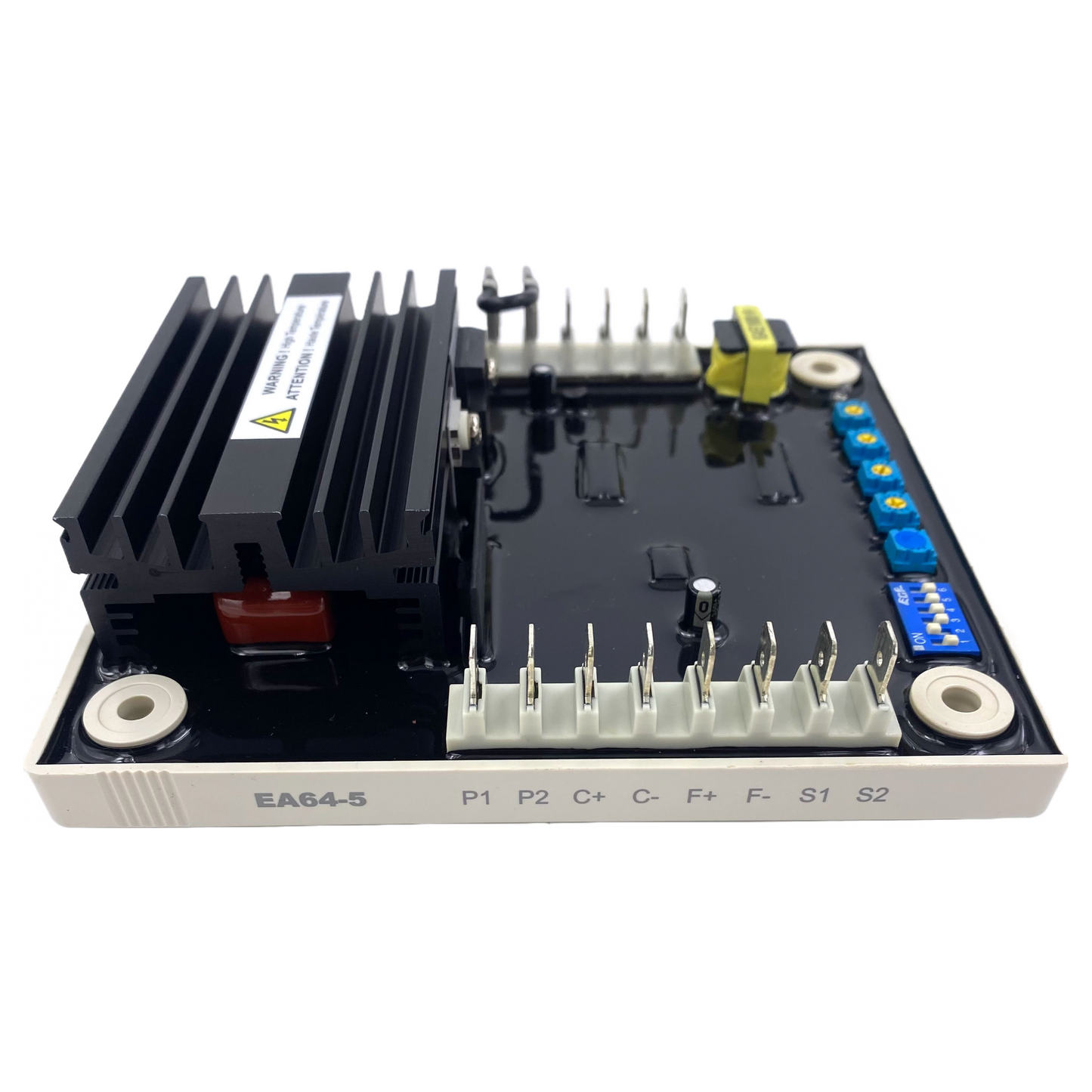

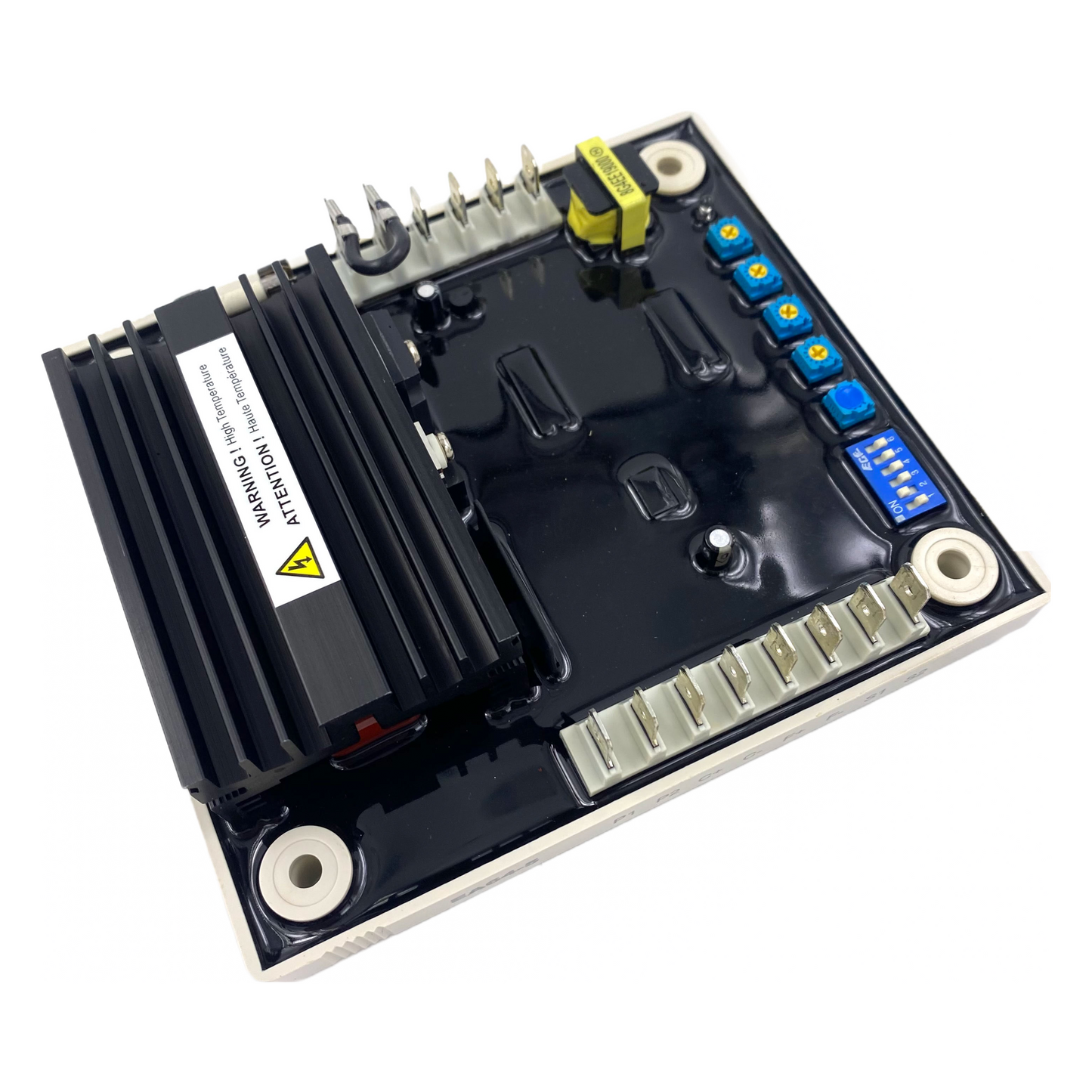

SP Powerworld EA64-5 AVR

SP Powerworld EA64-5 AVR

Regular price £174.00 GBP
Regular price Sale price £174.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SP Powerworld EA64-5 5Amp Automatic Voltage Regulator is designed for PMG synchronous generators and is a direct replacement for the ABB EA63-5.

£145.00 plus VAT

Accepted worldwide as the only Quality and Legal aftermarket replacement. It's been designed to work in exactly the same way and operates at the same performance. It’s the same size, function and has the same wiring connections, it also comes with 12 months warranty.

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Office: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

*All manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturers.

 Features:

  • Voltage regulation less than +/-0.5%
  • 220/380/440 Vac programmable input
  • Rugged compact design
  • Droop compensate
  • Analogue voltage input
  • With under frequency protection
  • Soft start voltage ramping
  • EMI suppression

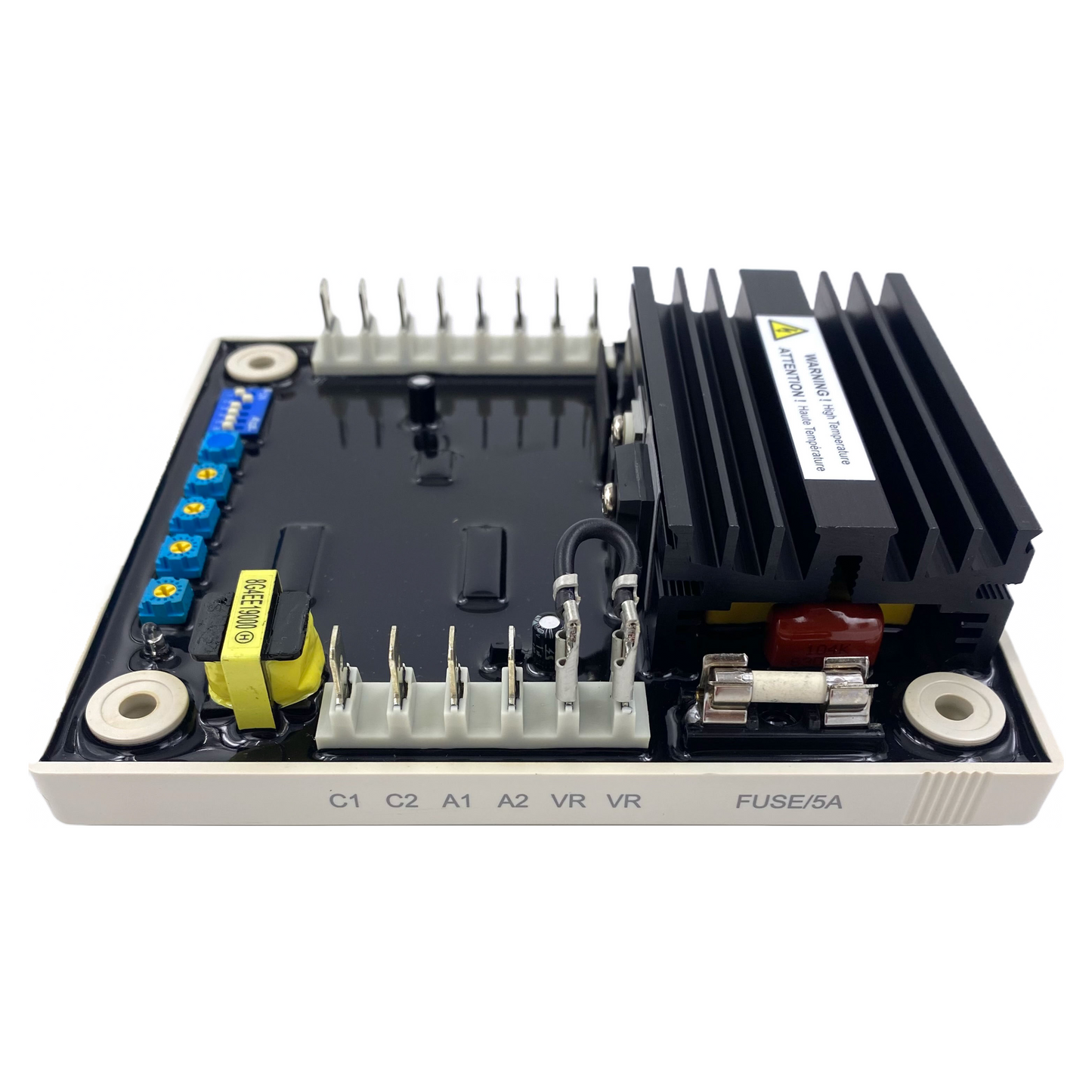

  • Built-in high capacity 5Amp fuse

 Specifications:

Sensing Input
  • Voltage
  • 220/440 Vac 50/60 Hz 1 phase
  • 190 to 290 Vac @ 220 Vac
  • 330 to 515 Vac @ 440 Vac
Power Input (1 phase)
  • Voltage 30 to 260 Vac 1 phase
  • Frequency 40 to 500 Hz
Excitation Output
  • Voltage Max. 85 Vdc @ power input 110 Vac
  • Max. 170 Vdc @ power input 220 Vac
  • Current Continuous 5A Intermittent 10A for 60 seconds
  • Resistance Greater than 9 ohms
External Volts Adjustment VR
  • Max. +/-5% with 1K ohm 0.5 watt potentiometer
  • Max. +/-10% with 2K ohms 0.5 watt potentiometer
Voltage Regulation
  • Less than +/-0.5% (with 4% engine governing)
Build Up Voltage
  • 5 Vac 25 Hz residual volts at power input terminal
Typical System Response
  • Less than 1 Cycle
Static Power Dissipation
  • Max. 12 watts
Quadrature Droop Input
  • CT 5A or 1A greater than 5VA (SW2 selectable)
  • Max. +/-7% @ P.F +/-0.7
Analogue Voltage Input
  • Un 0 to 15% @ 0 to 10 Vdc
Under Frequency Protection
(Factory Presets)
  • 50/60 Hz (SW3 selectable)
  • 40 to 50 Hz @ 50 Hz preset 45 Hz
  • 49 to 60 Hz @ 60 Hz preset 55 Hz
Voltage Thermal Drift
  • Less than 3% at temperature range -40 to +70 °C

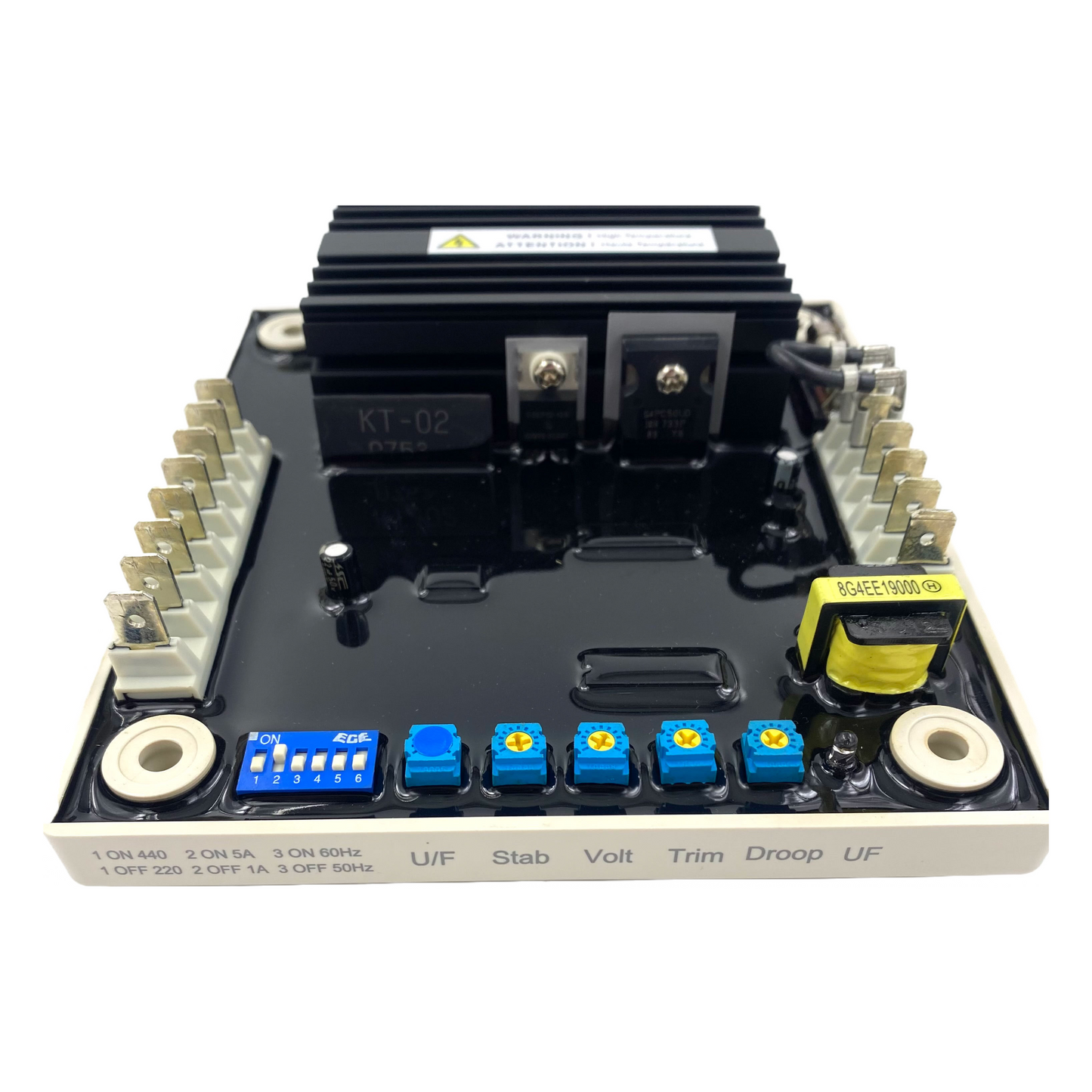

AVR Control Functions

VOLT
  • Voltage adjustment
STAB
  • Stability adjustment
U/F
  • Setting under frequency protection knee point
DROOP
  • Droop adjustment
TRIM
  • Analogue input adjustment

Environment

Operating Temperature
  • -40 to +60 °C
Storage Temperature
  • -40 to +85 °C
Relative Humidity
  • Max. 95%
Vibration
  • 3.0 Gs @ 100 to 2K Hz

Physical Specifications

Dimensions
  • 140.0 (L) x 125.0 (W) x 42.5 (H) mm
Weight
  • 578 g +/-2%
