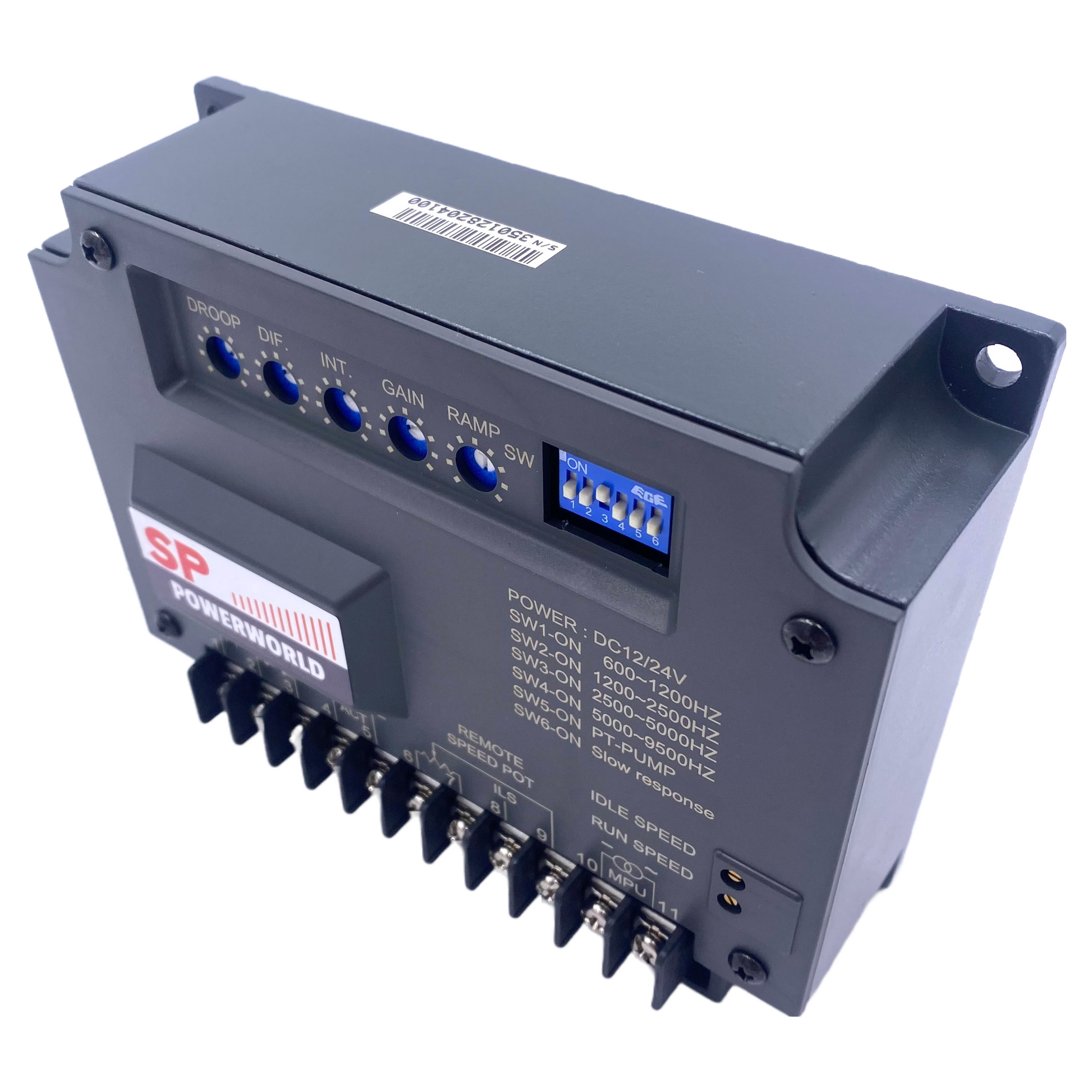

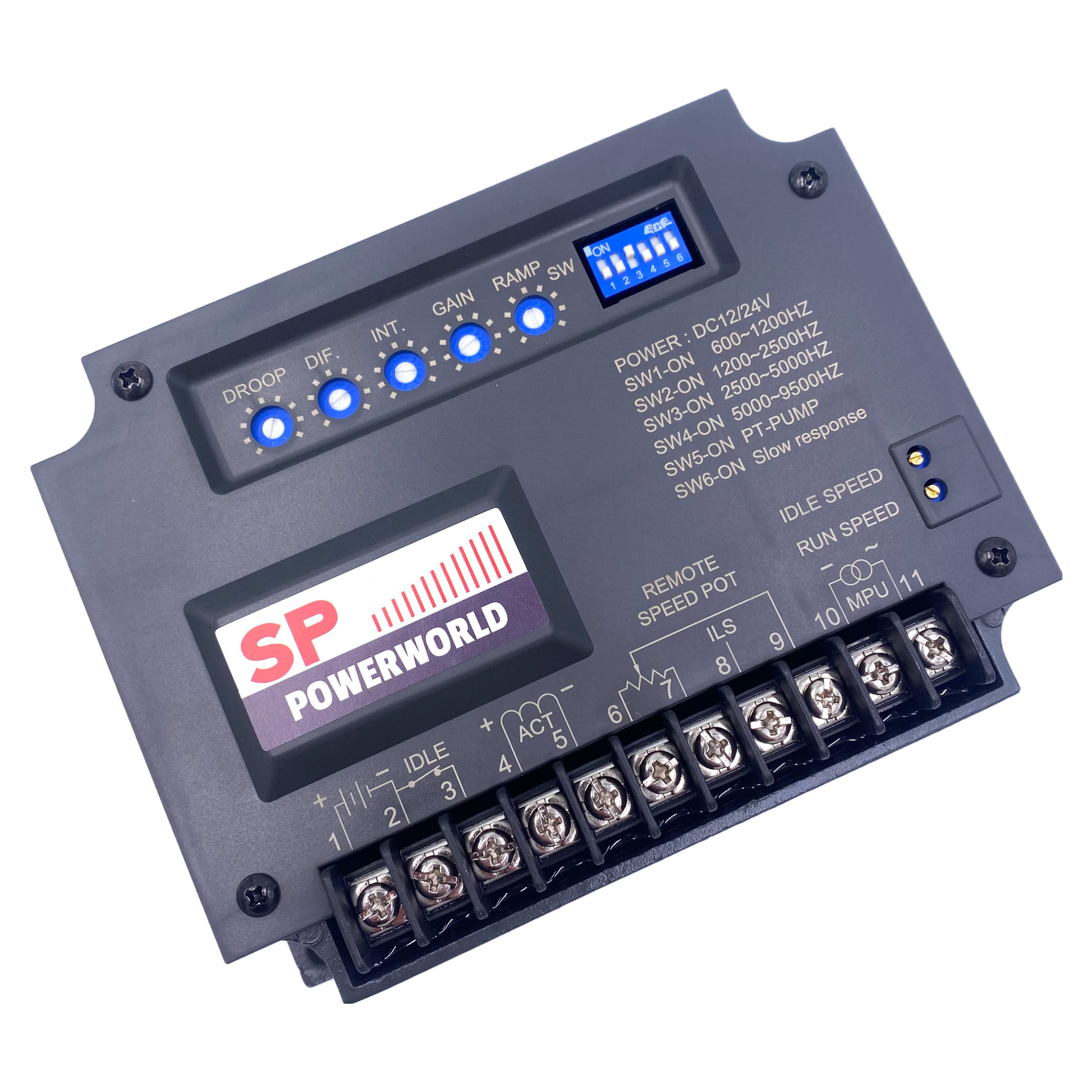

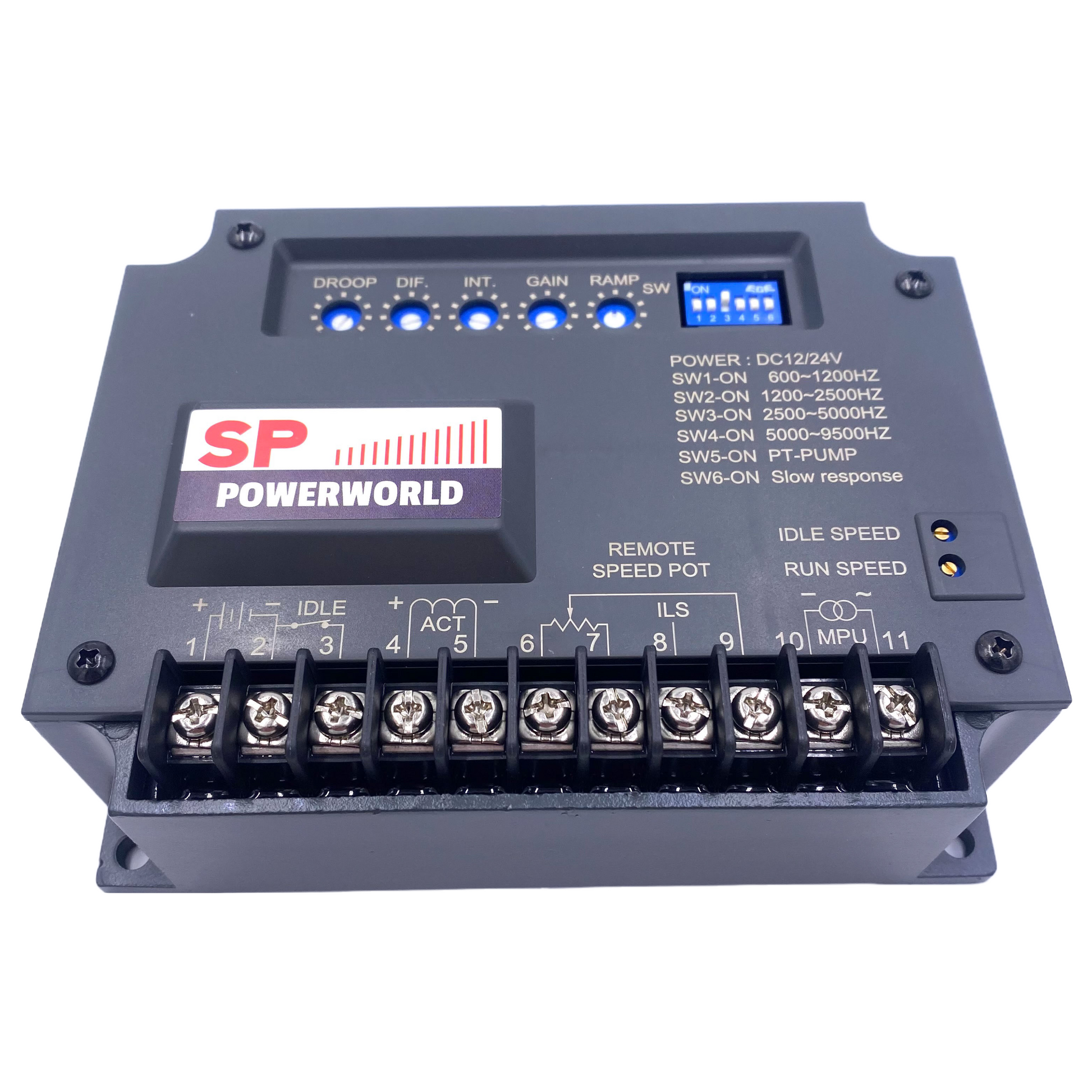

SP Powerworld EG3002 Electronic Governor Controller

SP Powerworld EG3002 Electronic Governor Controller

Regular price £210.00 GBP
Regular price Sale price £210.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

EG3002 comes with smoke limit, idle speed control and slow response mode. It's suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps. Used worldwide as a Compatible Replacement for the following models:

Cummins: 3062322 - 3419988 - 3098693 - 3044196 - 4913988-BI.

Barber Colman: DYN1 10794-000-0-24 - DYN1 10794-000-0-12 - DYN1-10654-000-0-24 - DYN1-1065X Series - DYN1-1069X Series - DYN1-10754-000-0-12 - DYN1-10754-001-0-24 - DYN1-10704-000-0-12 - DYN1-10704-000-0-24 - DYN1-10754-004-0-24. GAC: ESD2210-12 - ESD5111 - ESD5221 - ESD5500 - ESD5500E - ESD5500E K77255 - ESD5550 - ESC63C.

Woodward: 8290-038 - 8290-147 - 8290-185 - 8290-190 - 8290-044 - 8290-184 - 8270-1033 (12V) - EPG P/N 8290-189 - DPG2101-000-012 - DPG-2104 - DPG-2201-002*

£175.00 plus VAT

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

*All manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturers.

 Features:
  • It can be used in a wide range of input frequencies
  • 15 Amp maximum current output
  • Suitable for all diesel, natural gas, and petrol (gasoline) engines
  • Fast response time limits variations in speed (high stability)

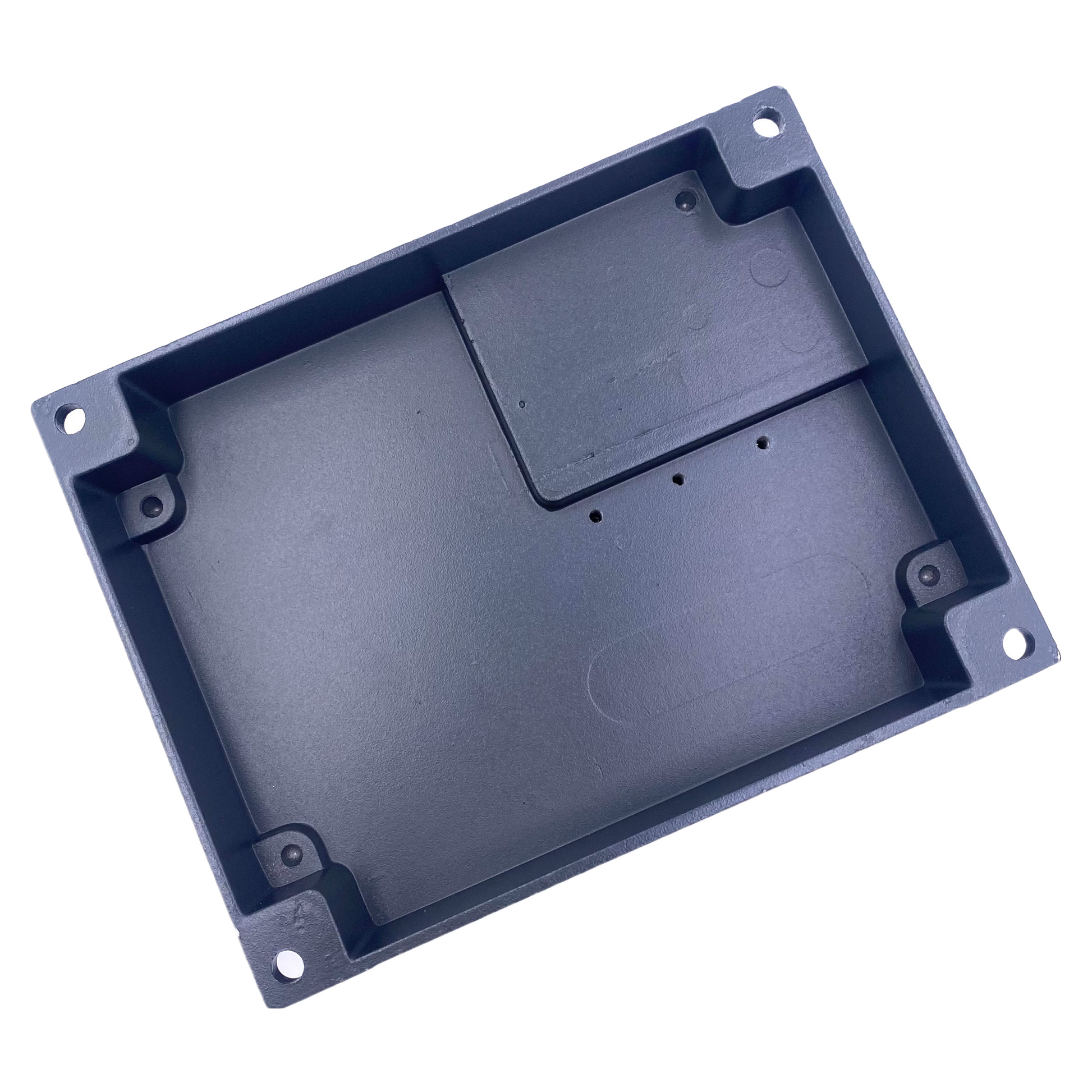

  • Injected epoxy housing provides high resistance to moisture, vibration, and oxidation
  • Can connect with external potentiometer for remote speed control
  • Adjustable Engine Idle speed setting
  • Accepts analog signal inputs from other controllers to control speed
 Specifications:
  • Operating Voltage
  • 10 to 32 Vdc
  • Outputs Current
  • Continuous 7A, Max. 15A for 10 seconds
  • MPU Frequency input
  • 10 to 10,000 Hz
  • MPU Voltage input
  • 1 to 120 Vac
  • Idle Adjustment Range
  • 30 to 90% of Normal Speed
  • Speed Temperature Shift
  • -40 to +80 °C, less than 3%
  • Ramp Time
  • 3 to 20 seconds (adjustable)
  • Remote Speed Adjustment Range
  • +/-7% @ 5K ohms 1 Watt potentiometer
  • Isochronous Load Sharing (ILS)
  • +/-5 Vdc or 0 to 10 Vdc
  • Speed Droop (DROOP)
  • 0 to 4% (adjustable)
  • Stability
  • Speed variation less than +/-0.25% at constant load
  • Static Power Consumption
  • Less than 1 Watt @ 12 Vdc
    Less than 2 Watt @ 24 Vdc

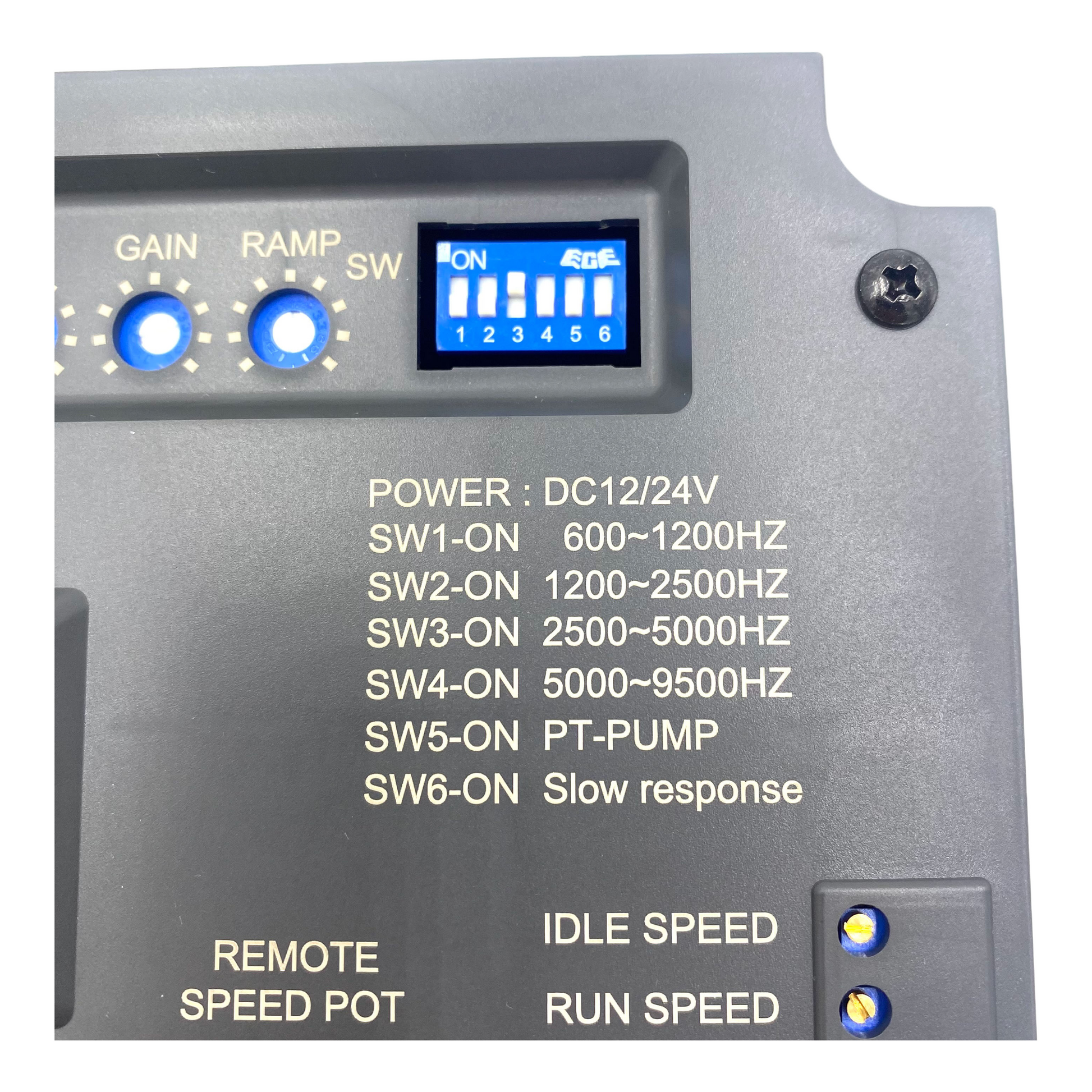

DIP Switch Settings

  • SW1 ON
  • 600 to 1200 Hz
  • SW2 ON
  • 1200 to 2500 Hz
  • SW3 ON
  • 2500 to 5000 Hz
  • SW4 ON
  • 5000 to 9500 Hz
  • SW5 ON
  • Cummins PT PUMP
  • SW6 ON
  • Extreme slow response engine

Control Characteristic Settings

  • DROOP
  • Speed Droop setting
  • GAIN
  • Gain setting
  • INT.
  • Integral setting
  • DIF
  • Differential setting
  • RAMP
  • Ramp Time
  • IDLE SPEED
  • Idle speed setting
  • RUN SPEED
  • Operating speed setting

Environment

  • Operating Temperature
  • -40 to +80 °C
  • Storage Temperature
  • -40 to +85 °C
  • Relative Humidity
  • Max. 95%
  • Vibration
  • 5.5 Gs @ 60 Hz

Physical Specifications

  • Dimensions
  • 147.0 (L) x 114.0 (W) x 50.0 (H) mm
    5.79 (L) x 4.49 (W) x 1.97 (H) inch
  • Weight
  • 690 g +/-2%
    1.52 lb +/-2%
