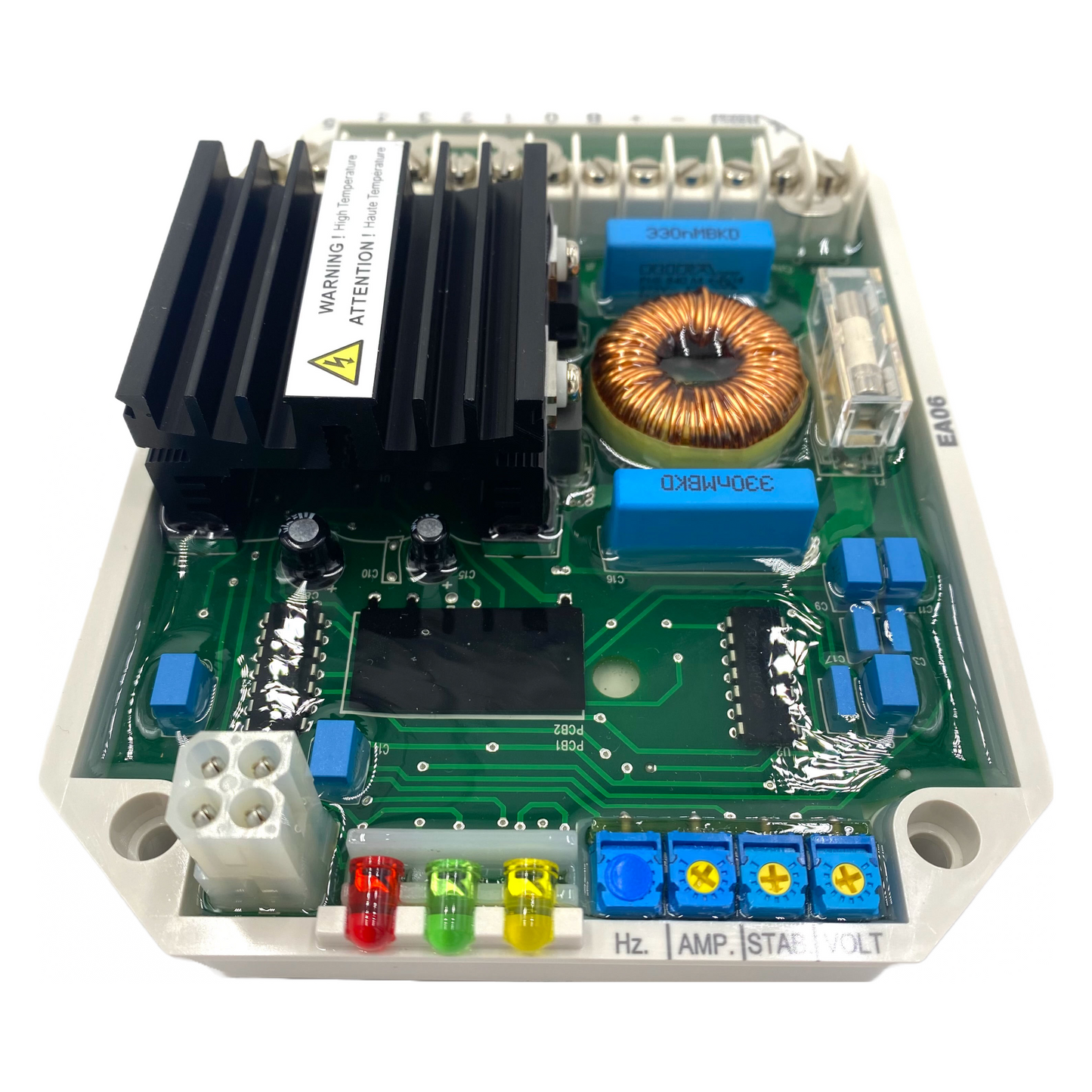

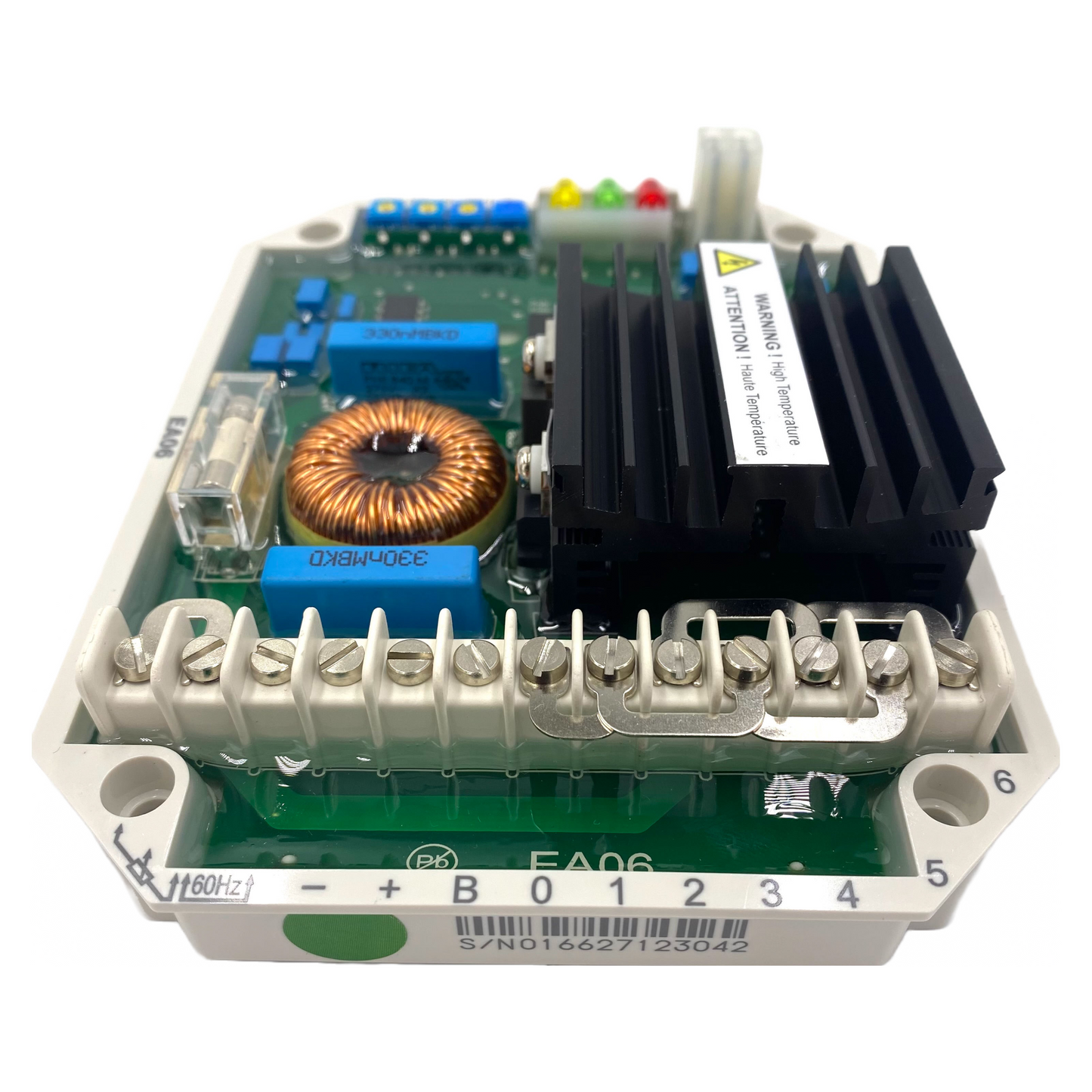

SP Powerworld EA06 AVR is a direct replacement for the Original Mecc alte UVR6.

£145.00 plus VAT

Accepted worldwide as the only Quality and Legal aftermarket replacement. It's been designed to work in exactly the same way and operates at the same performance. It’s the same size, function and has the same wiring connections, it also comes with 12 months warranty.

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Office: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

*All manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturers.

 Features:

  • Voltage regulation less than +/-1%
  • Sensing input 110 to 480 Vac for single phase sensing and three phase sensing
  • Rated frequency 50/60 Hz
  • Power input 50 to 280 Vac
  • Low frequency and over excitation protection
  • EMI suppression

 Specifications:

Sensing Input
  • Terminal 1-2 3-4 5-6
  • Can be connected to Y or △
  • 110 to 480 Vac 1 or 3 phase 50/60 Hz
Power Input
  • 50 to 280 Vac (1,2) 50/60 Hz
Output
  • Voltage 63 Vdc @ 220 Vac input
  • Current Continuous 6A Max.Intermittent 7A for 10 seconds
Voltage Regulation
  • Less than +/-1% (with 4% engine governing)
Build Up Voltage
  • Residual voltage above 5 Vac 25 Hz
External Voltage Adjustment
  • 100K ohm 1/2 watt +/-5%
Static Power Dissipation
  • Max. 5 watts
EMI Suppression
  • Internal electromagnetic interference filtering
Under Frequency Protection
  • Adjustable range 42 to 62 Hz
Excitation Winding Resistance
  • DC resistance 10 to 100 ohms
Over Excitation Protection
  • 25 to 55 Vdc @ 0.1 to 20 seconds

AVR Control Functions

VOLT
  • Voltage adjustment
STAB
  • Stability adjustment
U/F
  • Setting under frequency protection knee point
AMP.
  • Over Excitation Setting

Environment

Operating Temperature
  • -40 to +60 °C
Storage Temperature
  • -40 to +80 °C
Relative Humidity
  • Max. 95%
Vibration
  • 1.5 Gs @ 5 to 30 Hz
  • 5.0 Gs @ 30 to 500 Hz

Physical Specifications

Dimensions
  • 150.0 (L) x 115.0 (W) x 41.0 (H) mm
Weight
  • 440 g +/-2%
