SP Powerworld

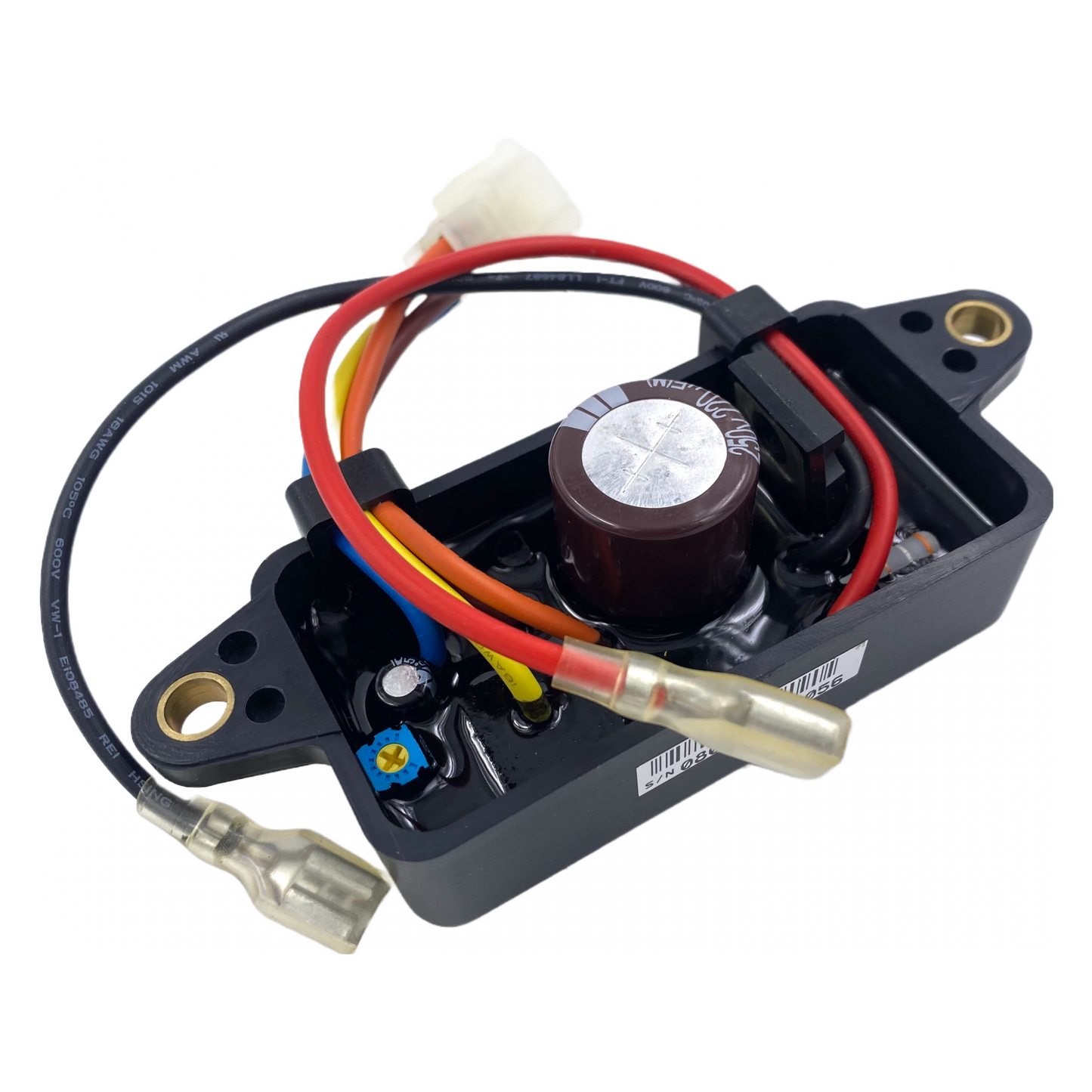

SP Powerworld EA03A AVR

SP Powerworld EA03A AVR

Regular price £54.00 GBP
Regular price Sale price £54.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

EA03A Universal Voltage Regulator is Compatible with the following models:

KUBOTA
  • Low Boy GL6500S
YAMAHA
  • EDL6500S
HONDA
  • EP-1800 , EP-2500
KAWASAKI
  • GE-1400 , GE-2200 , GA-2300 , GA-2900
SUZUKI
  • SV-1400L , SV-1400LD , SV-2200L , SV-2200LD
SAWAFUJI
  • SH-1800 , SH-2600
MARUYAMA
  • ME-1800 , ME-2600
ELEPAQ
  • PH-1800 , PH-2600



£45.00 plus VAT

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

 Features:

  • Voltage regulation less than +/-2%
  • For use in 50/60 Hz generators
  • Single phase voltage sensing

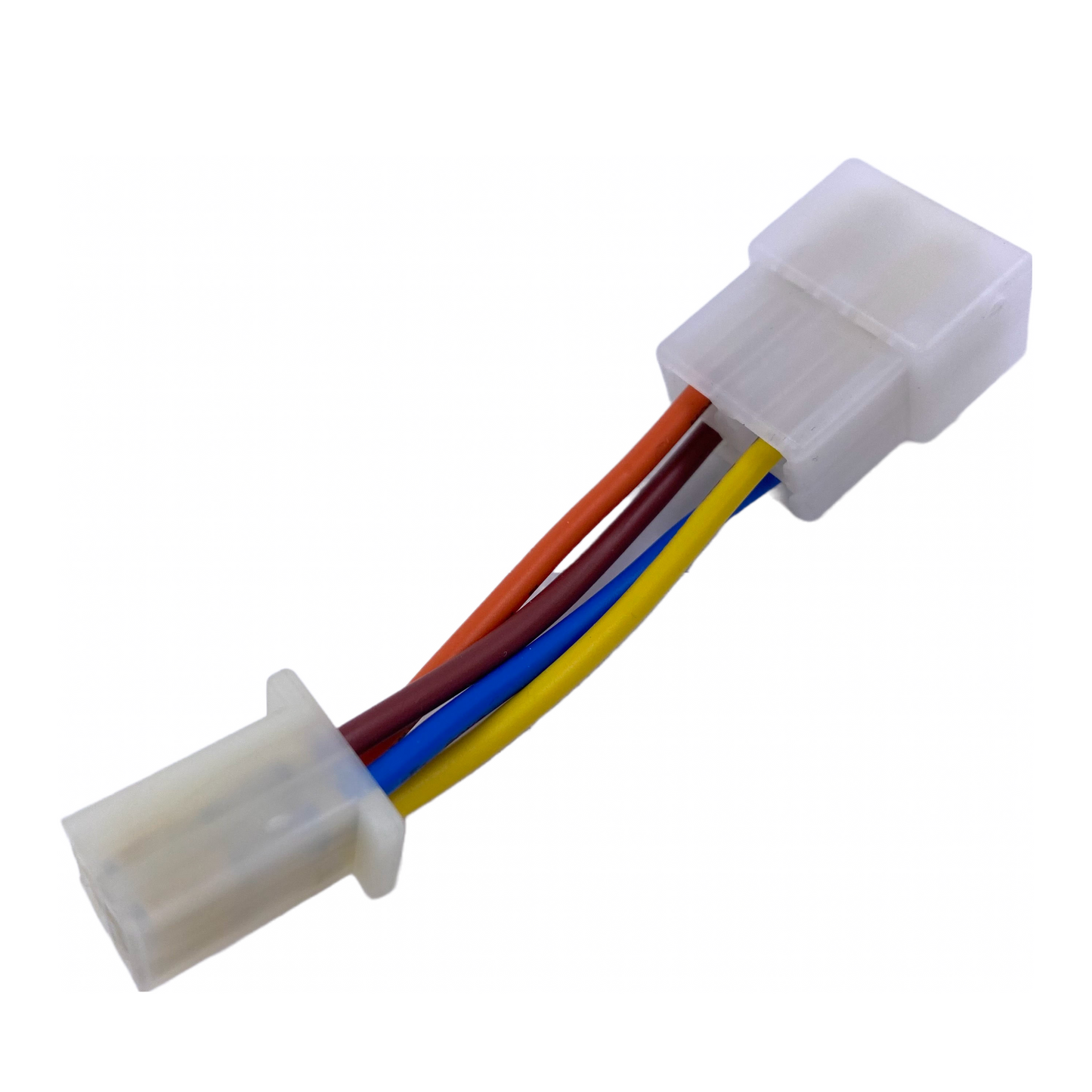

  • Compatible with many different models by adapter plug
  • Adjustable output voltage *1
  • Economical compact design

 Specifications:

Sensing Input
  • Voltage 18 to 22 Vac 1 phase 2 wire
Power Input
  • Voltage 60 to 90 Vac 1 phase 2 wire
Excitation Output
  • Voltage 5 to 85 Vdc
  • Current Continuous 3A, Intermittent 4A for 60 seconds
  • Resistance Min. 25 ohms
Voltage Regulation
  • Less than +/-2% (with 4% engine governing)
Build Up Voltage
  • Residual voltage at AVR terminal greater than 5 Vac
Voltage Adjust Range
  • 110 Vac +/-15%
Voltage Thermal Drift
  • 0.05% per °C change in AVR ambient

Compatible Replacement

Brand

Model

KUBOTA
  • Low Boy GL6500S
YAMAHA
  • EDL6500S
HONDA
  • EP-1800 , EP-2500
KAWASAKI
  • GE-1400 , GE-2200 , GA-2300 , GA-2900
SUZUKI
  • SV-1400L , SV-1400LD , SV-2200L , SV-2200LD
SAWAFUJI
  • SH-1800 , SH-2600
MARUYAMA
  • ME-1800 , ME-2600
ELEPAQ
  • PH-1800 , PH-2600

Environment

Operating Temperature
  • -40 to +60 °C
Storage Temperature
  • -40 to +85 °C
Relative Humidity
  • Max. 90%
Vibration
  • 1.5 Gs @ 5 to 30 Hz
  • 5.0 Gs @ 30 to 500 Hz

Physical Specifications

Dimensions
  • 113.0 (L) x 41.0 (W) x 32.0 (H) mm
Weight
  • 127 g +/-2%
View full details
  • Worldwide Shipping

    All items are shipped from the United Kingdom and we cover all of Europe and the rest of the world. For an accurate DHL Quotation please contact us.

  • Genuine Products with Full Warranty

    We are aware that there are poorly made illegal Chinese counterfeit models available on the market. Please note our products are Genuine, come with full warranty and have been sourced directly from the factory.
