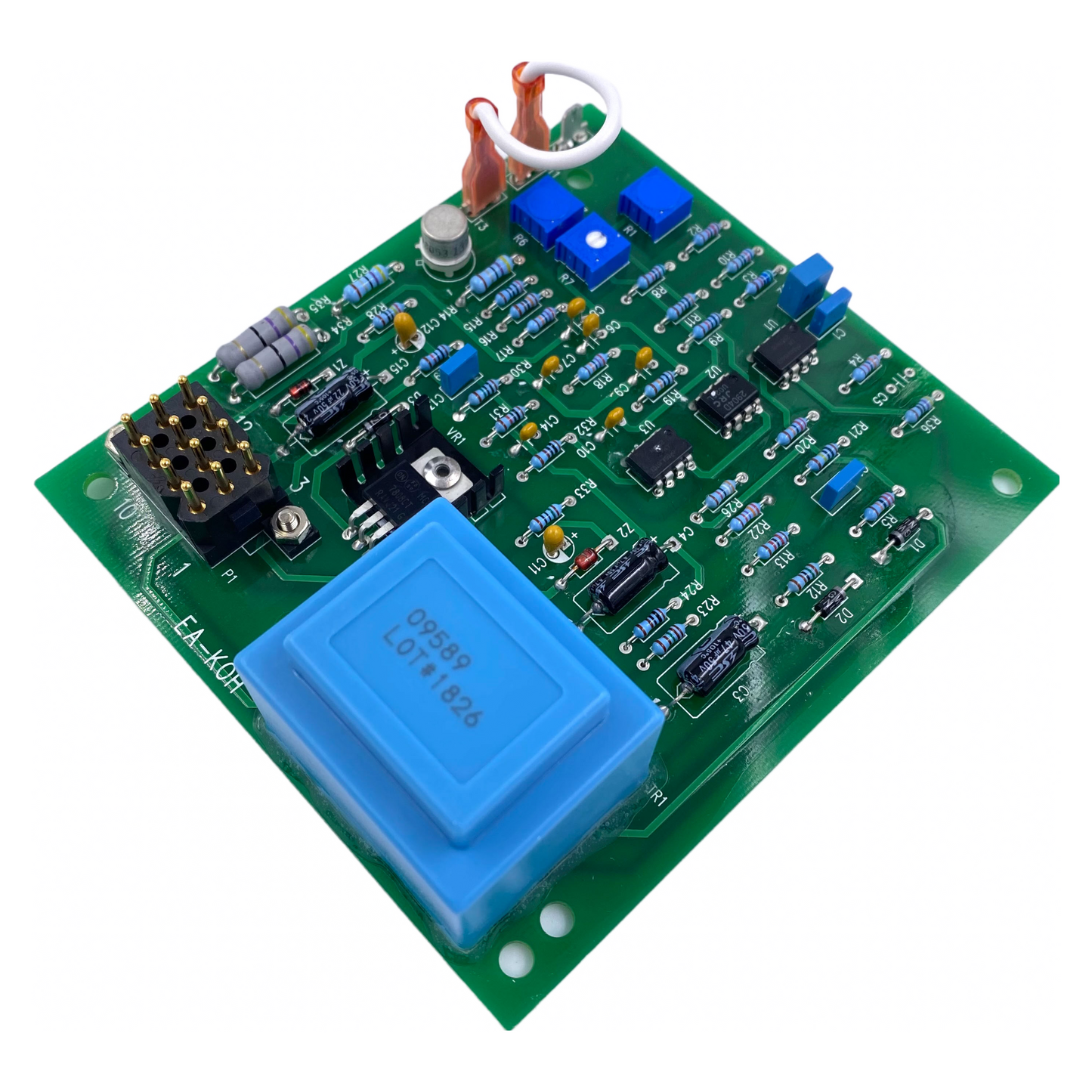

SP Powerworld EA-KOH AVR

SP Powerworld EA-KOH AVR

Regular price £156.00 GBP
Regular price Sale price £156.00 GBP
Sale Sold out
Shipping calculated at checkout.

SP Powerworld EA-KOH self excited genset voltage regulator is a compatible replacement for Kohler infrared photo coupler C-255670 regulator.

£130.00 plus VAT

Accepted worldwide as the only Quality and Legal aftermarket replacement. It's been designed to work in exactly the same way and operates at the same performance. It’s the same size, function and has the same wiring connections.

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

*All manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturers.

Features:
  • Voltage regulation less than +/-1%
  • Drive infrared LED to control excitation
  • 50/60 Hz optional
  • Under frequency protection
  • Adjustable stability
  • External voltage trimmer applicable

Specifications:

Sensing Input
  • Voltage 220 Vac 1 phase 2 wire
  • Frequency 50/60 Hz select by jumper
Power Input
  • Voltage 10 to 26 Vdc
Output
  • Current 20 mA
External Voltage Adjustment
  • +/-10% @ 1K ohm 1 watt potentiometer
Voltage Regulation
  • Less than +/-1% (with 4% engine governing)
Static Power Dissipation
  • Max. 2 watts
Voltage Thermal Drift
  • 0.05% per °C change in AVR ambient
Under Frequency Protection (Factory Presets)
  • 50 Hz system presets knee point at 45 Hz
  • 60 Hz system presets knee point at 55 Hz

AVR Control Functions

STAB
  • Stability adjustment

Environment

Operating Temperature
  • -40 to +60 °C
Storage Temperature
  • -40 to +80 °C
Relative Humidity
  • Max. 95%
Vibration
  • 3.3 Gs @ 100 to 2K Hz

Physical Specifications

Dimensions
  • 127.2 (L) x 114.5 (W) x 39.0 (H) mm
Weight
  • 109 g +/-2%
