SP Powerworld

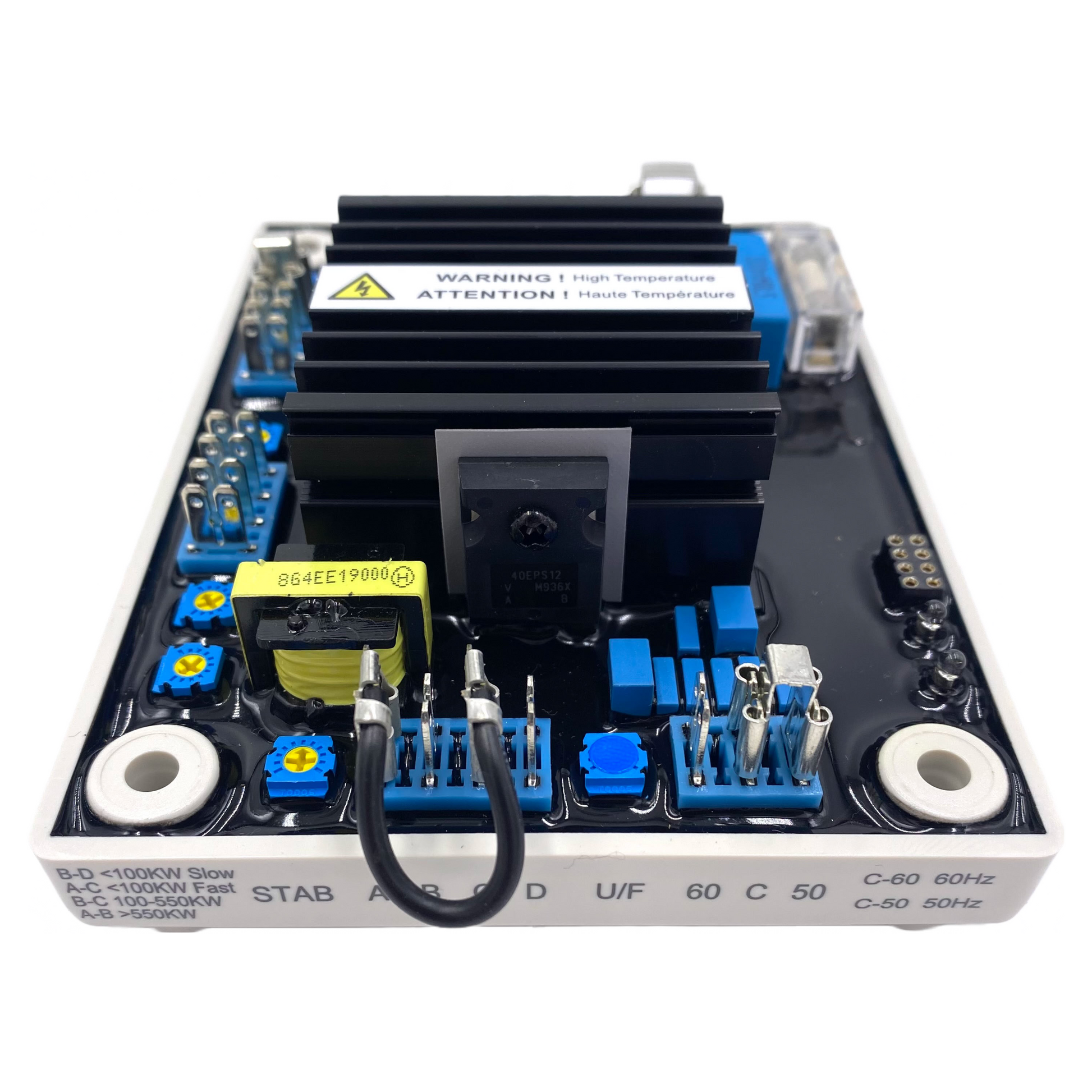

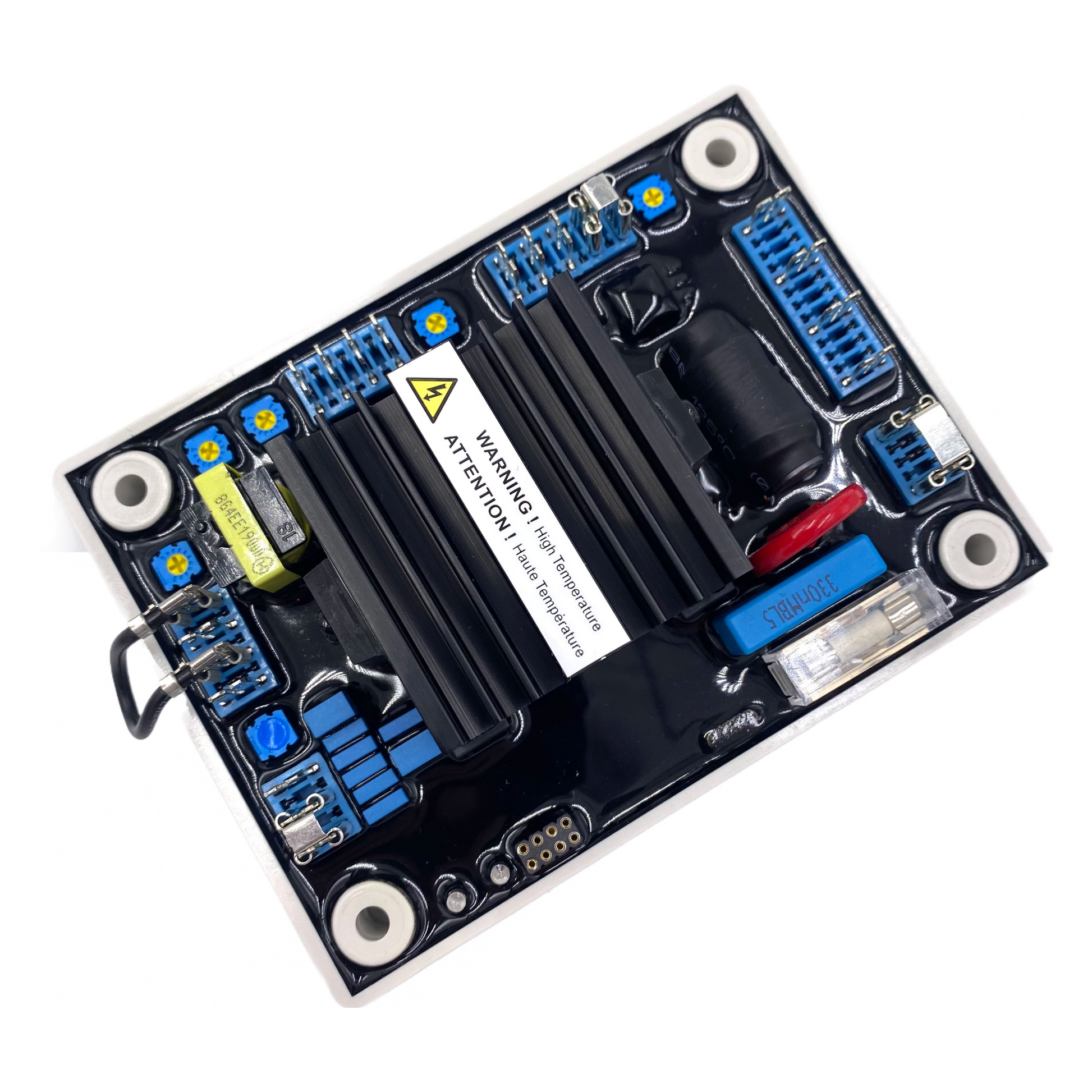

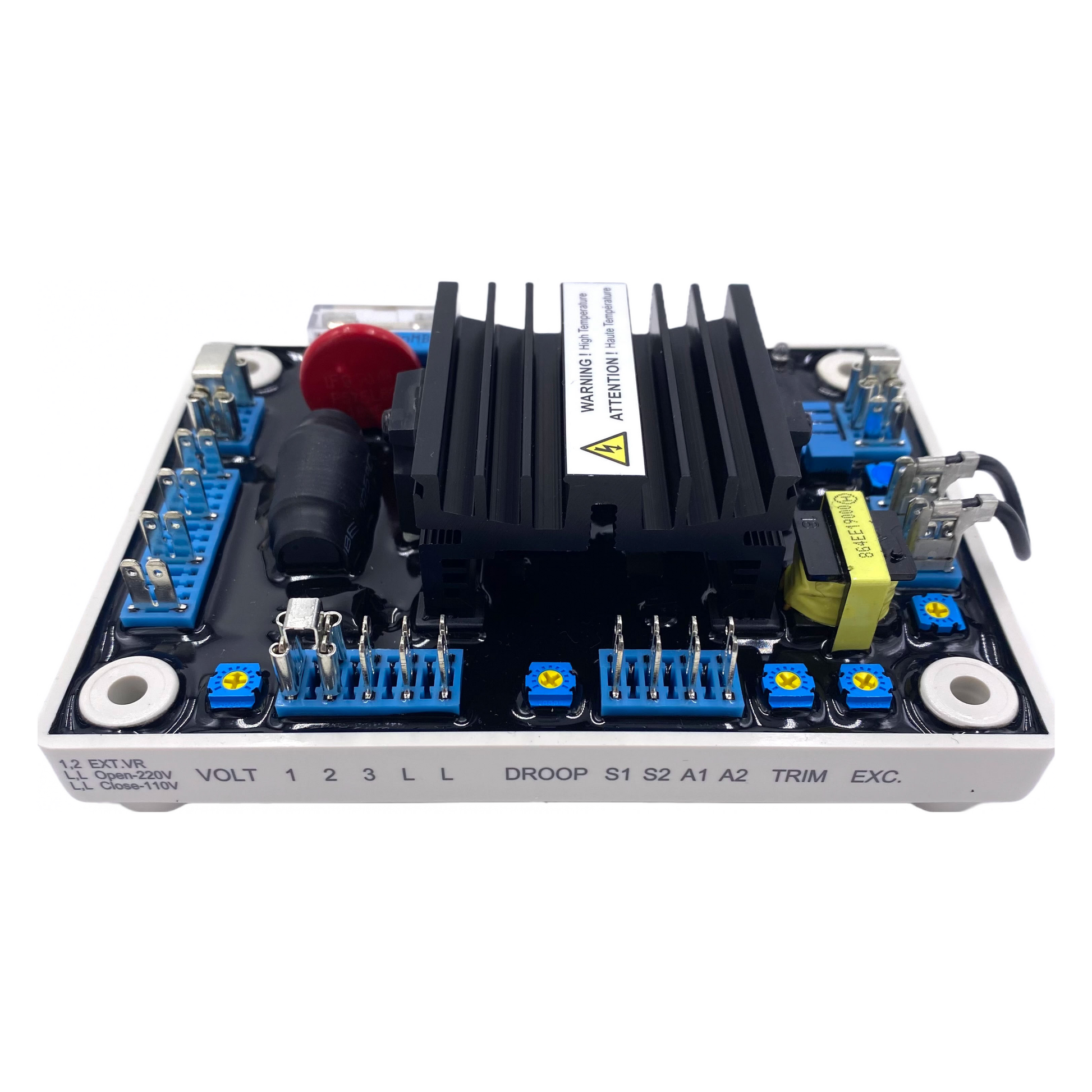

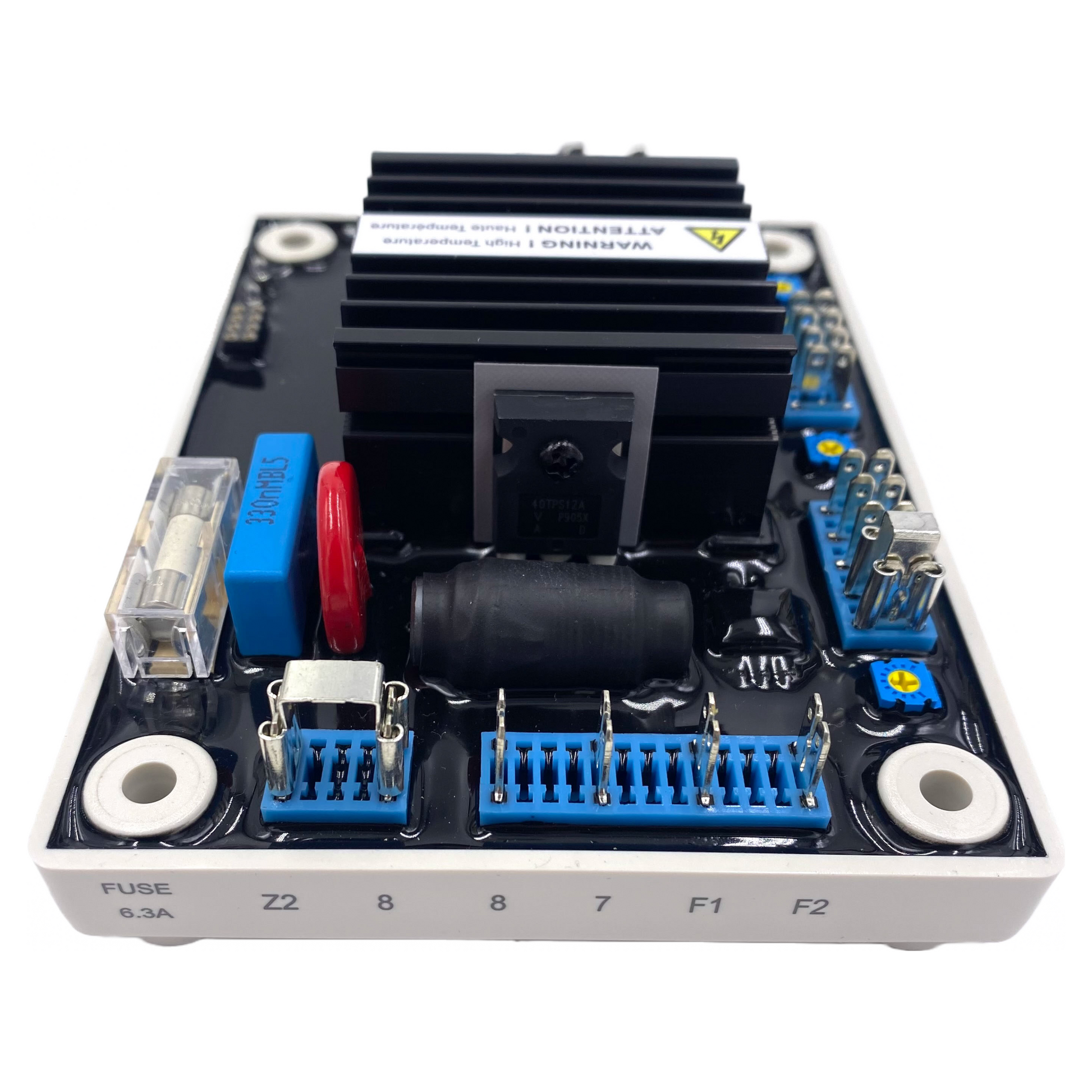

SP Powerworld ADVR-440 AVR

SP Powerworld ADVR-440 AVR

Regular price £168.00 GBP
Regular price Sale price £168.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SP Powerworld ADVR-440 Automatic Voltage Regulator is a direct replacement for the Original Stamford* AS440 (E000-24403/1P).

£140.00 plus VAT

Accepted worldwide as the only Quality and Legal aftermarket replacement. It's been designed to work in exactly the same way and operates at the same performance. It’s the same size, function and has the same wiring connections.

Ex stock - shipped Worldwide. For EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)

*All manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturers.

 Features:

  • Voltage Regulation < ±1%
  • 3 Phase PMG Power Input
  • For Use In Parallel Operation
  • Adjustable EXC TRIP, DIP, TRIM & DROOP Functions
  • Soft Start Voltage Ramping
  • Under Frequency Roll Off Protection
  • UFRO & Over Excitation LED Indicators
  •  Specifications:

    Sensing Input
    (Average Reading)
    • Voltage 90 to 130 Vac @ 110 Vac 1 phase 2 wire
    • Voltage 180 to 260 Vac @ 220 Vac 1 phase 2 wire
    • Frequency 50/60 Hz Jumper setting
    Power Input
    • Voltage 40 to 300 Vac 1 phase 2 wire
    • Frequency 40 to 60 Hz
    Excitation Output
    • Continuous 63 Vdc 4A @ 220 Vac 1 phase Max. 90 Vdc 7.5A for 10 seconds
    • >Resistance Min. 15 ohms Max. 100 ohms
    • >Fuse Spec. Slow blow 5 x 20 mm S505-6.3A
    External Voltage Adjustment
    • Max. +/-10% @ 1K ohm 1 watt potentiometer
    Voltage Regulation
    • Less than +/-0.5% (with 4% engine governing)
    Build Up Voltage
    • 5Vac 25Hz residual volts at power input terminal
    Soft Start Ramp Time
    • 4 seconds +/-10%
    Typical System Response
    • Less than 20 milliseconds
    EMI Suppression
    • Internal electromagnetic interference filtering
    Static Power Dissipation
    • Max. 4 watts
    Quadrature Droop Input
    • Max. sensitivity 0.07A for 5% droop
    • Max. input 0.33A
    Analogue Voltage Input
    • +/-5 Vdc or +10 Vdc, 5% @ 1 Vdc
    Under Frequency Protection (Factory Presets)
    • 50 Hz system knee point at 45 Hz
    • 60 Hz system knee point at 55 Hz
    Over Excitation Protection
    • Set point 20 to 55V @ 110V
    • Set point 40 to 110V @ 110V
    Voltage Thermal Drift
    • Less than 3% at -40 to +70 °C
    Under Frequency Knee Point Thermal Drift
    • Less than +/-0.1 Hz at -40 to +70 °C

    Environment

    Operating Temperature
    • -40 to +60 °C
    Storage Temperature
    • -40 to +85 °C
    Relative Humidity
    • Max. 95%
    Vibration
    • 5.5 Gs @ 60 Hz
