SP Powerworld ADVR-12

SP Powerworld ADVR-12

Regular price £300.00 GBP
Regular price Sale price £300.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

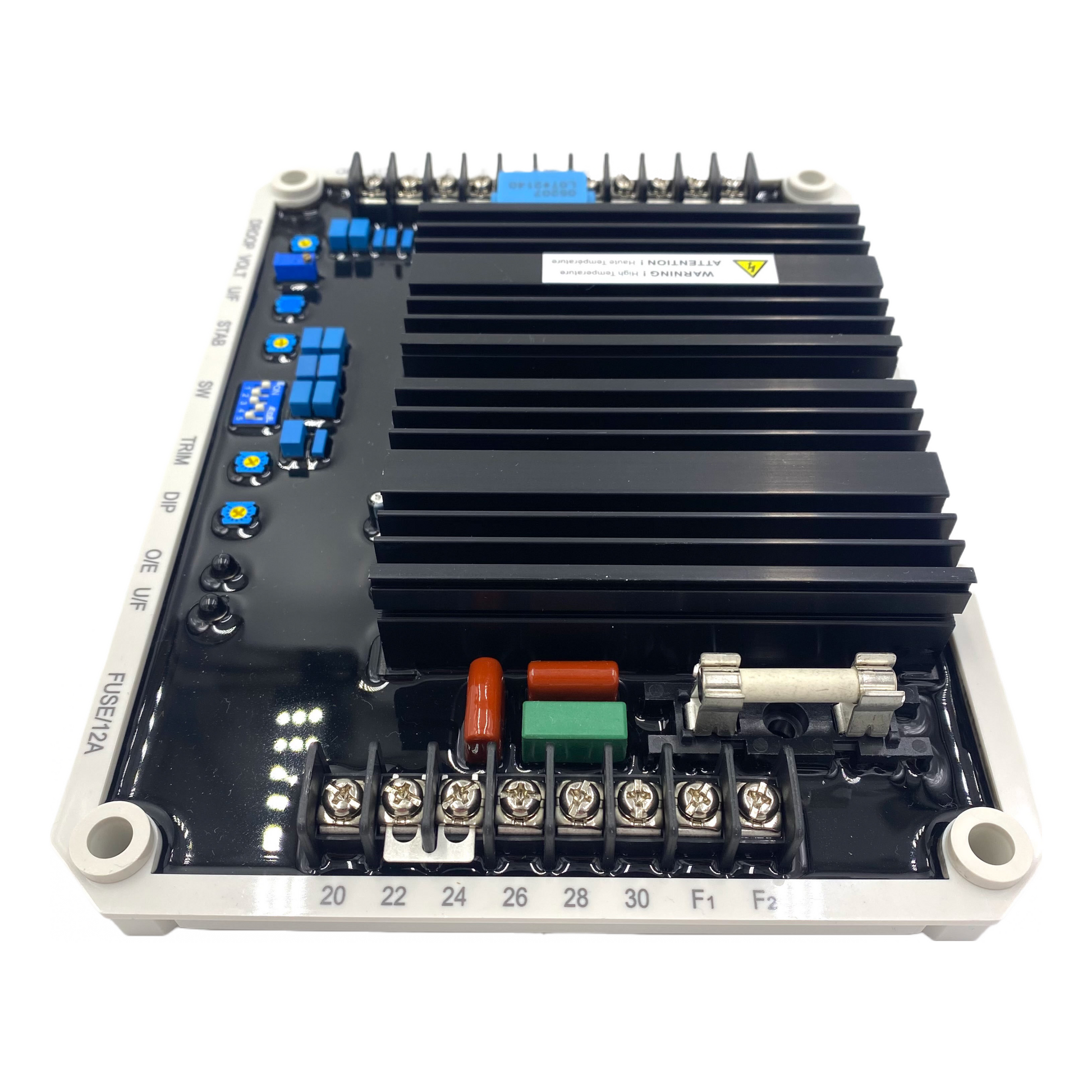

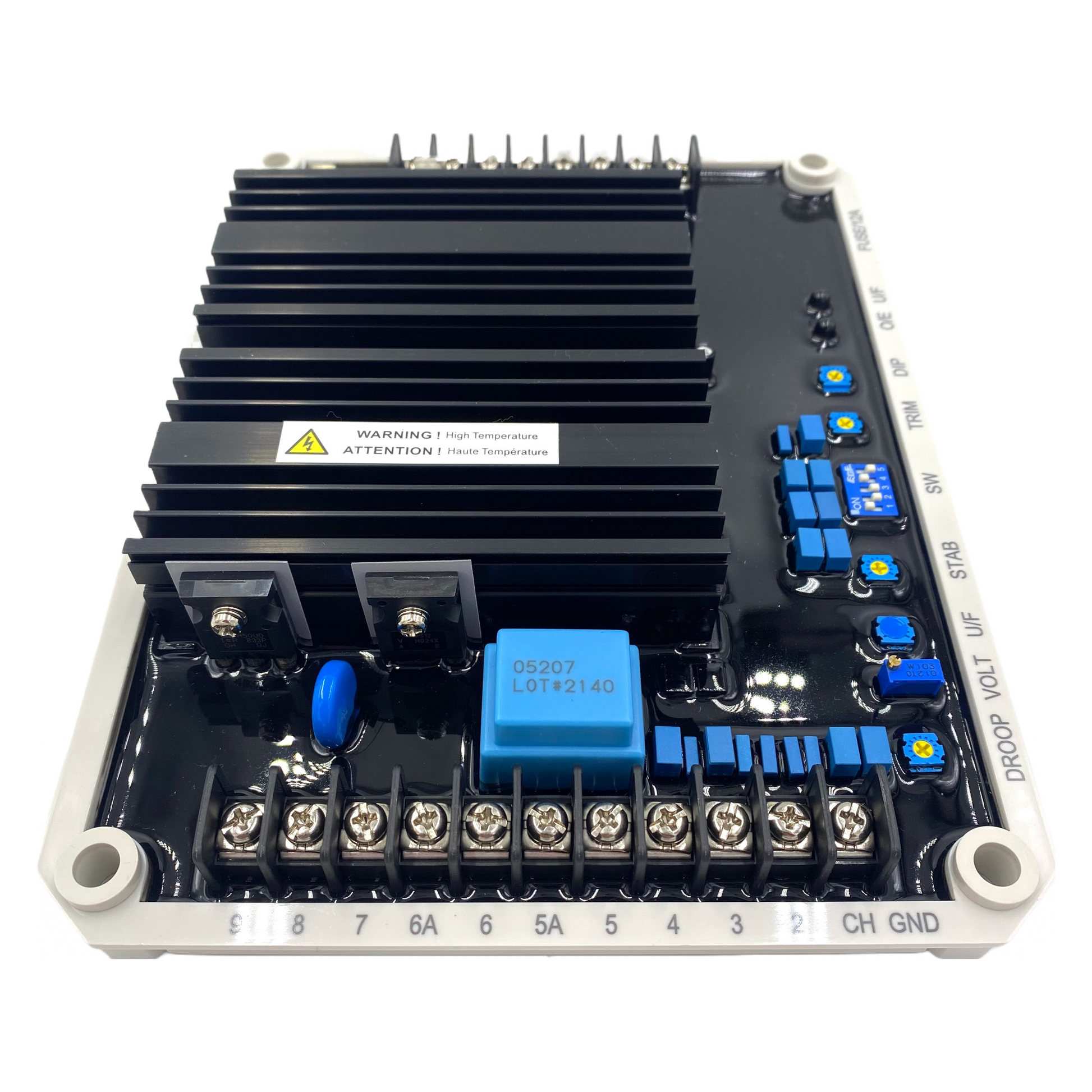

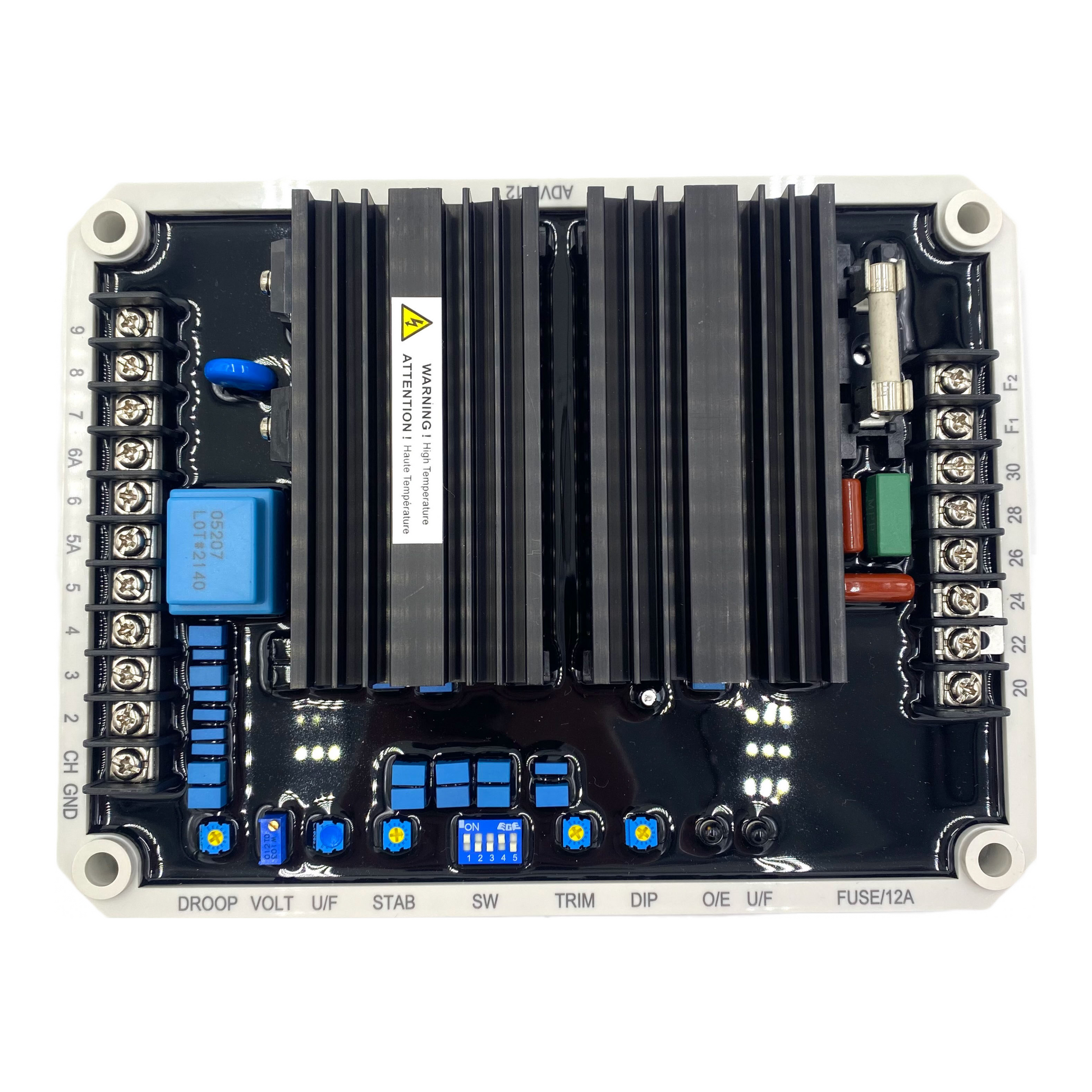

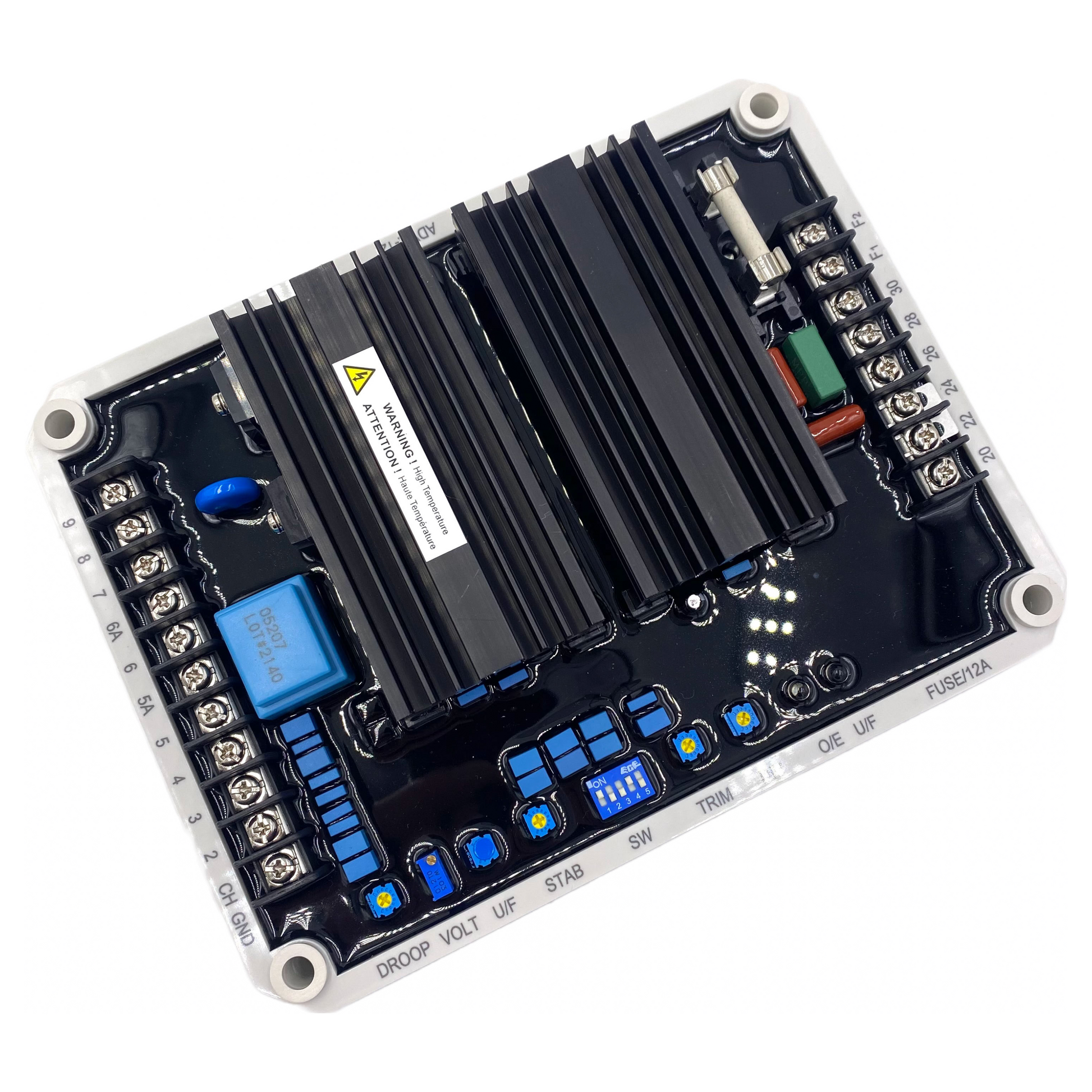

SP Powerworld ADVR-12 12 Amp Universal Automatic / Digital Voltage Regulator.

Compatible with the Caterpillar 3516 - VR6 - VR3 - CDVR.

£250.00 plus VAT

Ex stock - shipped Worldwide. For GBP, EURO or USD pricing please contact us:

Sales: info@sp-powerworld.com

Tel: +44 (0)115 923 2568 (United Kingdom)

Tel: (24-hour) +44 (0)7484709956 (United Kingdom)



 Features:

  • 1 or 3 phase sensing input and power input
  • Voltage regulation less than +/-0.5%
  • 220/380/440/480 Vac programmable input
  • DIP switch selectable 50/60 Hz
  • Multiple excitation system compatibility: SHUNT, AUX, PMG
  • Inverse-time over excitation protection
  • Under frequency protection and soft start voltage ramping
  • EMI suppression
  • Built-in high capacity protection fuse


     Specifications:

    Sensing Input
    • Voltage 180 to 520 Vac 1 or 3 phase selectable
    • Frequency 50/60 Hz selectable
    Power Input
    • Voltage 60 to 300 Vac 1 or 3 phase
    • Frequency 50 to 500 Hz
    Output
    • Voltage Max. 125 Vdc @ power input 220 Vac
    • Current Continuous 12A Intermittent 25A for 10 seconds
    • Resistance
    • ≧ 5 ohms @ power input 110 Vac
    • ≧ 11 ohms @ power input 220 Vac
    Burden in Shunt and PMG Wiring
    • 1320 VA @ power input 110 Vac
    • 2640 VA @ power input 220 Vac
    Voltage Regulation
    • Less than +/-0.5% (with 4% engine governing)
    Build Up Voltage
    • 6 Vac 25 Hz residual volts at power input terminal
    Static Power Dissipation
    • Max. 12 watts
    EMI Suppression
    • Internal electromagnetic interference filtering
    Over Excitation Protection
    • Inverse-time 125 +/-5 Vdc @ power input 220 Vac
    External Voltage Adjustment
    • +/-5% 10K ohms 1 watt potentiometer
    Soft Start Ramp Time
    • 4 seconds +/-10%
    Voltage Thermal Drift
    • Less than 3% at temperature range -40 to +70 °C
    Analog Input
    • Un 0 to 10% @ 0 to 10 Vdc or +/-0.5 Vdc
    Quadrature Droop Input
    • CT 1A/5A Max. +/-5% @ P.F +/-0.7
    Under Frequency Protection (Factory Presets)
    • 50 Hz system presets knee point at 47 Hz
    • 60 Hz system presets knee point at 57 Hz
    • (-40 to +70 °C deviation 0.1 Hz)

    AVR Control Functions

    VOLT
    • Voltage adjustment
    STAB
    • Stability adjustment
    U/F
    • Setting under frequency protection knee point
    DROOP
    • Current compensation droop adjustment
    TRIM
    • Analogue input adjustment
    DIP
    • Voltage droop ratio setting

    Indication LED

    O/E
    • Over excitation protection indicator
    U/F
    • Under frequency protection indicator

    Environment

    Operating Temperature
    • -40 to +70 °C
    Storage Temperature
    • -40 to +85 °C
    Relative Humidity
    • Max. 95%
    Vibration
    • 3.0 Gs @ 100 to 2K Hz

    Physical Specifications

    Dimension
    • 214.0 (L) x 163.0 (W) x 45.7 (H) mm
    Weight
    • 1130 g +/-2%
